Applications
Edge protection paper
Edges and corners take the knocks in transit. Kraft folded over them covers the surface, so strapping and the next load rub on paper first.
01 / The job
What edge protection does
Strapping bites into edges. Cartons and furniture rub against each other on a truck. Corners hit the floor when a load comes off.
A few layers of kraft folded over each edge and corner put paper between your goods and these contacts.
02 / Grades
Grades for edge protection
Pick 1
Kraft
60–120 GSM
Long-fibre, unbleached kraft is the strength grade, built for handling.
- Reel widths
- 600–1,800 mm
- Roll lengths
- 1,000–3,000 m
- Sheet sizes
- 700×1,000, 900×1,200 mm
- MOQ
- 1 tonne per GSM/width
- Lead time
- 3–6 weeks after spec approval
- Food contact
- Not for direct contact. Use butter paper or OGR.
Pick 2
Bleached Kraft
60–120 GSM
Bleached kraft for edges on goods your customer unwraps, such as furniture and fixtures.
- Reel widths
- 600–1,800 mm
- Roll lengths
- 1,000–3,000 m
- Sheet sizes
- 700×1,000, 900×1,200 mm
- MOQ
- 1 tonne per GSM/width
- Lead time
- 3–6 weeks after spec approval
- Food contact
- Ask us before food use
Figures from the KEIKO PAPERS specification sheet. See every paper grade
03 / Methods
Wrapped edges and angle boards

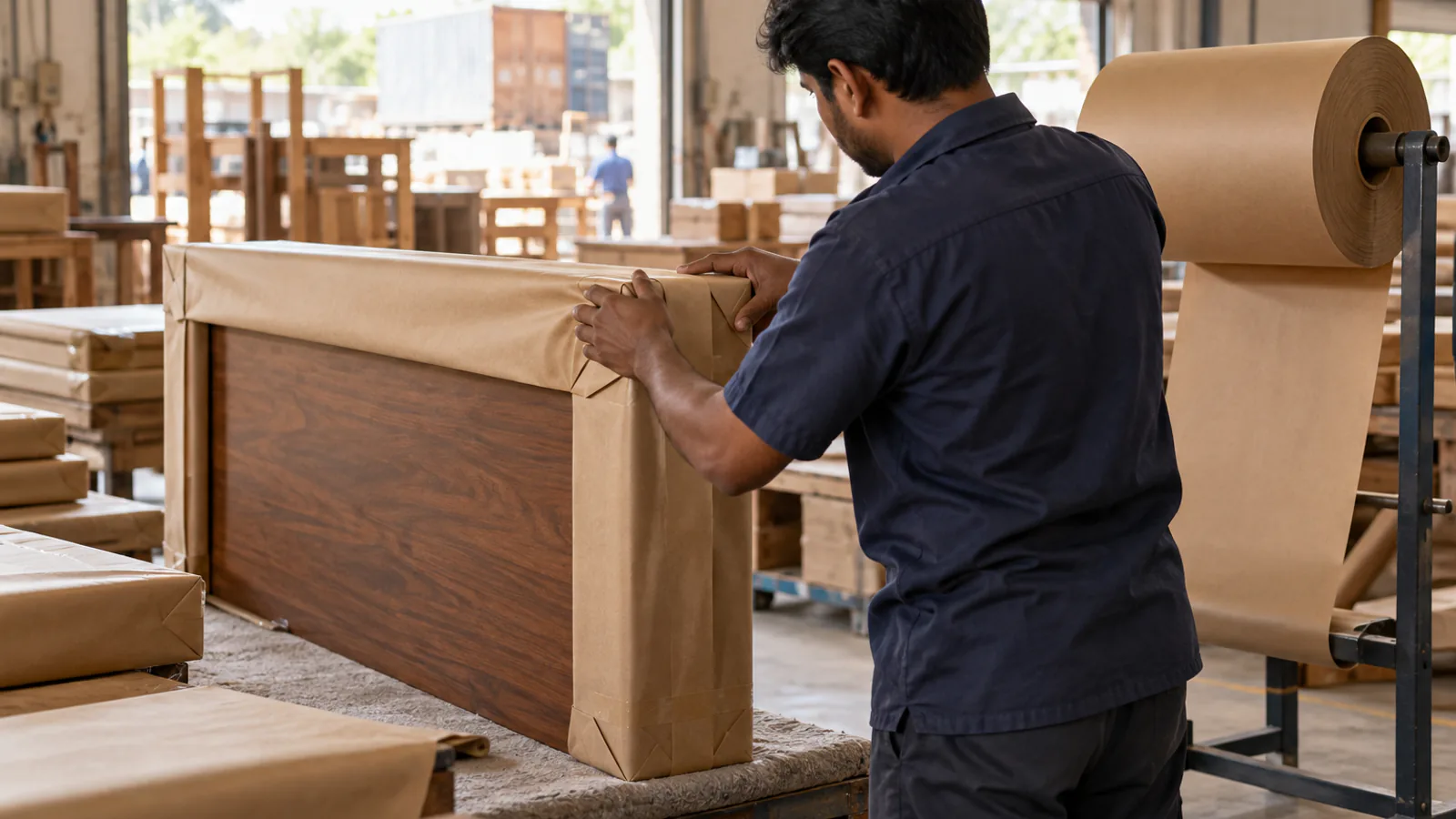

Two methods use kraft at the edge. Wrapping folds kraft from a reel over the edge and tapes the fold. Angle boards are rigid L-shaped strips made by laminating several layers of kraft under pressure.
Angle boards hold up under strapping on pallets. Wrapped kraft suits single items, furniture panels and odd shapes.
We supply kraft paper, not finished angle boards. If you make angle boards, send us your ply specification and we will check which of our weights fits.
04 / Weight
Picking a weight
Weight follows the load and the handling. Heavy panels and rough journeys point towards 120 GSM. Light goods sit towards 60 GSM.
Test the wrap on a real dispatch before you set a standard for every load.
05 / Ordering
Formats and order size
Kraft reels run 600 to 1,800 mm wide and 1,000 to 3,000 m long. Pick the reel width to suit the edges you wrap and the dispenser on your bench. Sheets come in 700×1,000 and 900×1,200 mm.
The MOQ is 1 tonne per GSM and width, with a lead time of 3 to 6 weeks after spec approval.
Questions
Before you specify
Is kraft paper good for edge protection?
Yes. Kraft is the strength grade in our range, and our kraft page lists industrial wrap and protection among its main uses.
Do you sell angle boards?
No. We supply kraft paper by the reel and the sheet. Angle board makers laminate kraft into rigid strips.
Brown or white kraft for edges?
Brown kraft for goods out of sight in transit. Bleached kraft when your customer unwraps the goods and sees the paper.
